Quotes - Engineering - SalesHeat Exchangers For
Condensing Acid-Bearing Vapor Without Losing the Shell

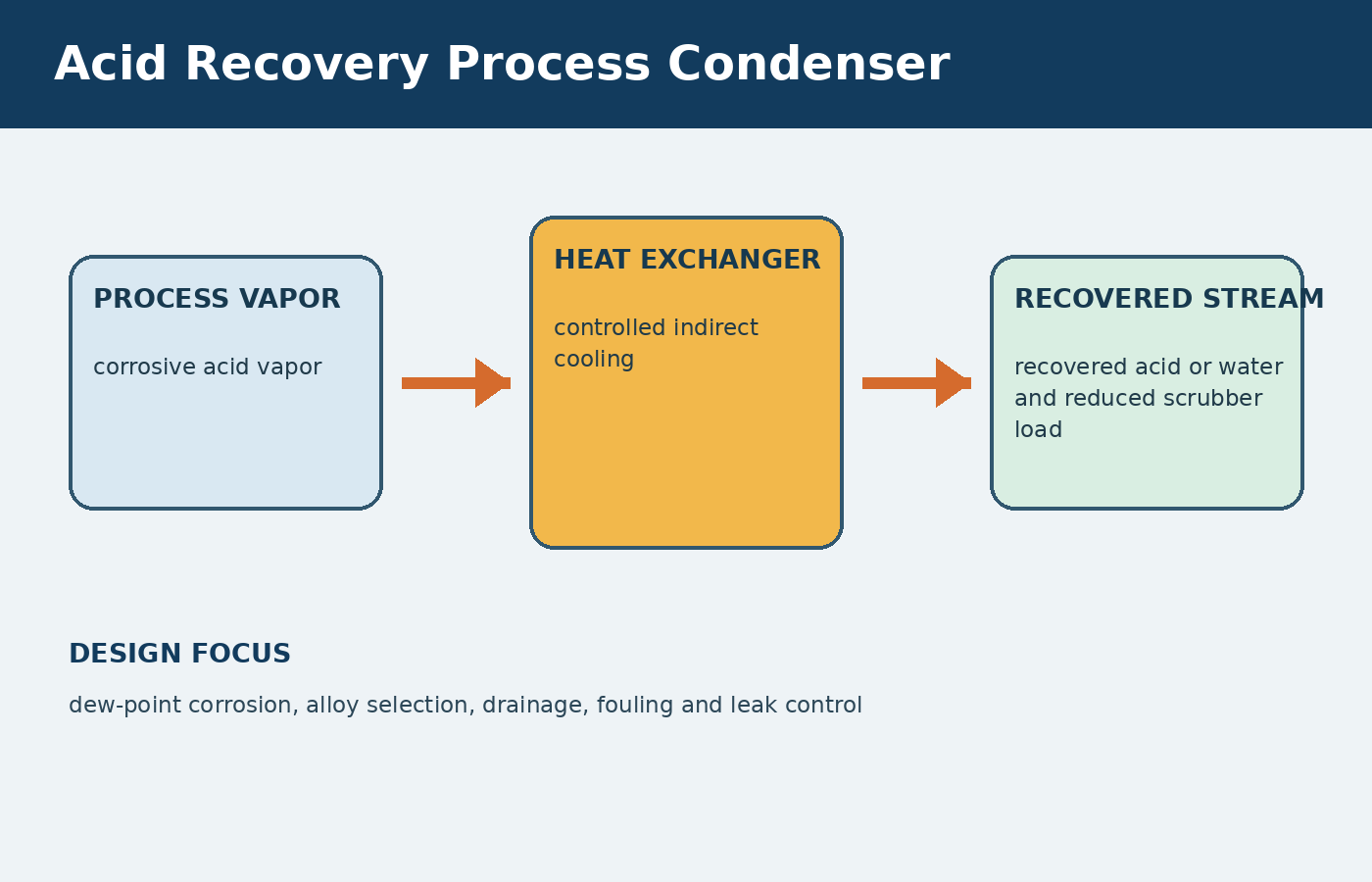

Acid recovery condensers sit on the overheads of sulfuric acid concentrators, HCl stripping and regeneration trains, nitric acid concentration columns and acetic acid dehydration towers. The vapor is mostly water carrying some fraction of acid, and the catch is that the first droplets to form are far stronger than the vapor they came from. That local dew-point liquid, sitting on a tube wall at the wrong temperature, decides the material of construction - not the bulk composition printed on the process flow diagram.
The usual answer is a Fixed Tubesheet shell and tube unit with the acid on the tube side, so only tubes, tubesheets and channels see the acid while the shell stays in carbon steel on cooling water. Tantalum, zirconium, Hastelloy and resin-impregnated graphite tubes all fit that geometry. A Single Spiral is the alternative when the vapor carries solids, or when the plant wants a compact unit with one titanium or Hastelloy pressure boundary; its single channel per side scours itself and opens for inspection once the covers come off.
Before asking for a price, pin down the acid, its concentration at the condenser inlet, any chlorides or fluorides riding along, the condensing pressure (many concentrators run under vacuum to hold the boiling point down) and whether the condensate is product or waste. Those facts move the material choice more than any thermal number, and the material choice usually sets most of the cost.
Request a Quote
Where Acid Condensers Actually Corrode
Stainless steel tolerates cold, very strong sulfuric acid and very dilute sulfuric acid reasonably well, and fails badly in the middle range - which is exactly the range a condenser walks through as the vapor cools and the condensate is diluted by water condensing behind it. A 316 condenser on a sulfuric concentrator overhead can look fine at the inlet and be perforated two-thirds of the way down the tubes.
Hydrochloric acid is the case where stainless is wrong at every concentration: chloride pitting and stress corrosion cracking start quickly, and a 316 HCl-water condenser can leak within a season. Graphite, tantalum or fluoropolymer-lined construction are the normal choices there. Nitric acid runs the other way, with 304L serving well in most concentrations. Acetic acid is fine in 316L until it is hot and glacial or carries formic acid or halide traces, at which point Hastelloy or zirconium takes over.
Rating an Acid Overhead
An acid overhead is a mixture condensation with a long temperature glide, and it has to be rated from a vapor-liquid equilibrium curve, not one latent heat. Vacuum concentrators add a tight pressure drop budget and large vapor volumes, so tube count and inlet nozzle size are often set by velocity rather than by surface. Coolant temperature matters as much as coolant flow: tempered water that holds the tube wall above the point where intermediate-strength acid forms can be worth more than extra area, and very cold water on a sulfuric service can create the most aggressive condensate in the whole unit.
Tube-Side Acid, Shell-Side Water
In the Fixed Tubesheet unit the acid stays inside straight tubes that can be inspected and, in metallic construction, eddy-current tested, while the shell takes inexpensive cooling water. Gasketed Plate & Frame and Brazed Plate units are poor fits: gaskets and copper braze are the first things hot acid attacks. The Single Spiral earns it's place on slurried or crystallizing acid streams and on small concentrators where plot space is short, but it is a one-alloy unit, so a titanium spiral is a nitric or chloride-oxidizing answer and not a sulfuric one.
What the Right Construction Saves
A tube leak on an acid condenser does not stay inside the unit. If the acid side runs at higher pressure, acid enters the cooling-water loop, and the first sign is often corroded tower fill, a pH alarm on the basin or a heat exchanger elsewhere in the plant failing. Picking a material that holds up across the whole condensing range keeps that problem out of the utility system entirely.
Recovered acid is usually sold, reused or fed back to the process, so metal pickup matters. Iron, nickel and chromium dissolved from a corroding stainless bundle discolor the product and can push it out of specification long before the condenser actually leaks. The right tube material keeps the recovered acid clean as well as keeping the shell intact.
Graphite, Tantalum or High Alloy
Resin-impregnated graphite handles HCl and dilute sulfuric acid at modest cost and conducts heat well, but it limits pressure, dislikes thermal shock and is attacked by strong oxidizers such as concentrated nitric acid. Tantalum resists nearly every acid except hot fuming sulfuric and anything carrying fluoride; it is expensive per pound but used as thin tubing. Hastelloy C-276 and C-22 cover mixed and halide-contaminated services, and zirconium is a strong option for HCl and hot acetic acid. Gaskets on any of these are usually PTFE or expanded graphite.
Leak Detection and Turnaround Practice
Put a conductivity or pH analyzer on the cooling-water return and trend it; a slow rise is the earliest warning of a weeping tube. Many acid plants deliberately run the cooling water at a higher pressure than the process so that a leak dilutes the acid instead of contaminating the utility loop. Metallic bundles can be eddy-current tested at turnaround, while graphite units are hydrotested and visually checked. Bring tempered water up slowly on startup so a cold wall does not form the worst-case condensate while the overhead stabilizes.
