Quotes - Engineering - SalesHeat Exchangers For
Overhead Condensing in Hydrocarbon Plants

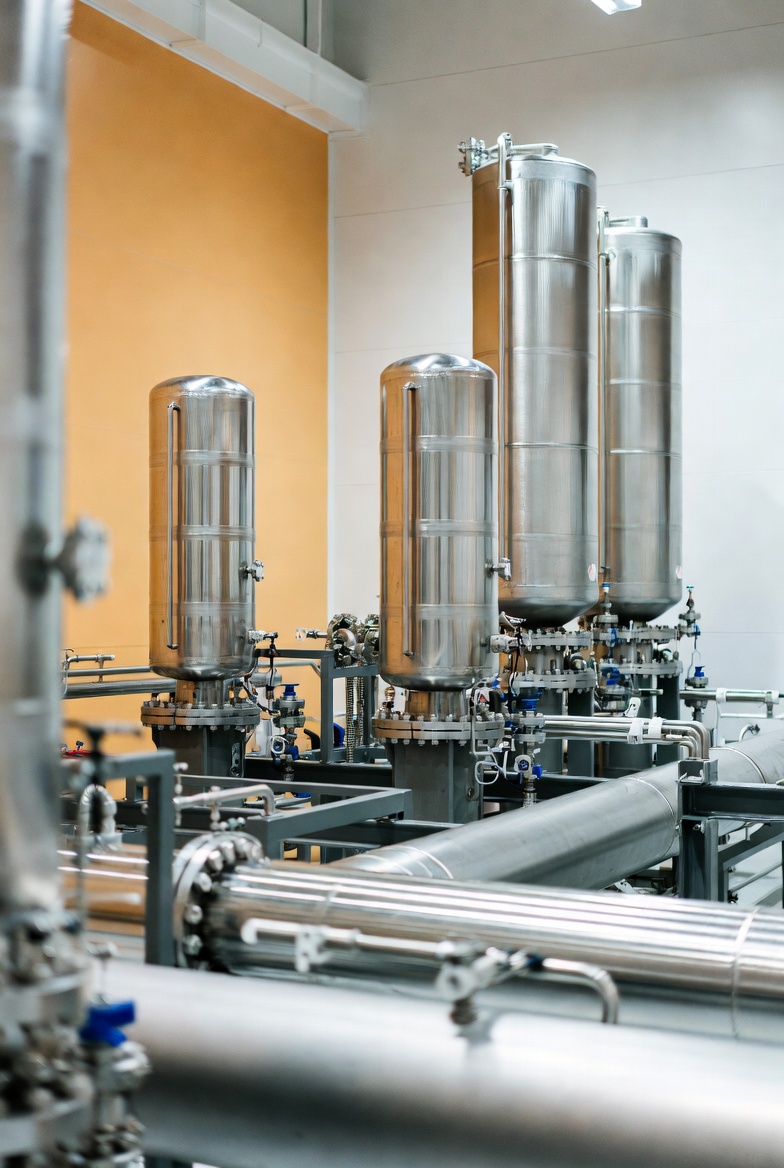

Petrochemical condensers take the overhead vapor from fractionators, splitters, strippers and stabilizers in olefins, aromatics, alcohols and intermediates units. Duties run large, often tens of millions of BTU per hour on a single column, and the vapor is rarely one component: light ends and hydrogen ride through as noncondensables, and steam stripping or wash water puts free water into the overhead. The condensate that reaches the reflux drum is frequently two immiscible liquids that have to be separated there.
Floating Head shell and tube construction dominates because these units are cleaned on a schedule: the bundle pulls for hydroblasting, the straight tubes can be rodded, and the floating head absorbs differential expansion between a hot overhead and cold cooling water. A Horizontal Fin Fan air cooler makes sense where cooling water is scarce or expensive, and it is common as a first stage condensing most of the load, followed by a smaller water-cooled trim unit to reach the final reflux temperature.
Most operators specify TEMA R, the class written for severe petroleum and petrochemical service: heavier minimum tube wall, thicker tubesheets, full corrosion allowance and more conservative nozzle and flange design than the lighter commercial classes. If your site standard calls for it, say so up front, because it changes weight, cost and fabrication schedule.
Request a Quote
Large Duties and a Wide Operating Window
A petrochemical overhead seldom runs at one point. Feed rate, reflux ratio, product slate and summer-versus-winter cooling water all move the duty, and the condenser has to hold column pressure across the whole range. When it falls short, the signature is plain: overhead pressure creeps up, the pressure controller opens the vent to flare, separation suffers and operators cut feed to stay inside the relief setting.
Two-liquid condensate is the other complication. Water and hydrocarbon condense along different curves, and the point where liquid water first appears is where wet hydrogen sulfide, chlorides or ammonium salts concentrate and attack carbon steel. Ammonium chloride can also deposit as solid salt upstream of that point. Wash water injection, a correctly placed water boot on the reflux drum and a condensing curve that shows the water dew point all belong in the design.
Building the Condensing Curve
Rating starts from a simulated condensing curve with enough points to capture the hydrocarbon glide, the water dew point and the noncondensable fraction at the outlet. Allowable pressure drop on an atmospheric or pressurized overhead might be a few psi, while a vacuum column may allow only a fraction of that and push the design toward a TEMA J or X shell with vapor on the shell side. Specify fouling resistances for both sides; the cooling-water side is often the one that limits run length.
Floating Head or Fin Fan
Shell & Tube - Floating Head gives the lowest condensing temperature for a given plot, because cooling water can approach within about 10-15 F of the process. A Horizontal Fin Fan is limited by the design dry-bulb temperature and usually needs a 20-30 F approach, so it suits overheads that condense well above ambient. Fixed Tubesheet units are a poor choice on dirty shell-side water, since the shell cannot be cleaned mechanically. Plate exchangers rarely fit at these vapor volumes and pressures.
What a Properly Sized Overhead Delivers
Holding column pressure steady is the main return. A condenser with margin lets the column run at its design pressure through a hot afternoon, so the operator is not trading product purity or throughput against flare valve position.
Less vapor to flare means less lost product and fewer emissions events to report. Where the overhead runs hot enough, raising condensing pressure slightly can move the whole duty to air cooling and take a large load off the cooling tower.
Carbon Steel and Its Exceptions
Carbon steel with a corrosion allowance is the baseline for hydrocarbon service, with killed steel, hardness limits and post-weld heat treatment where wet sour conditions are present. Tubes change with the cooling water: carbon steel on treated tower water, admiralty brass or copper-nickel on fresh water, titanium or duplex on brackish or seawater. Overheads carrying chlorides or organic acids may need duplex or high-alloy tubes at the water dew point zone even when the rest of the unit stays carbon steel.
Monitoring and Bundle Pulls
Trend the overhead approach temperature and condenser pressure drop against duty; a rising approach at constant load is fouling, while a rising pressure drop usually means salt or polymer deposits on the process side. Keep cooling-water velocity in the tubes high enough to limit scaling, typically above about 3 ft/s. Plan the bundle pull with the turnaround, leave clearance for the extractor, and record tube inspection results so the next replacement can be ordered before the bundle fails.
